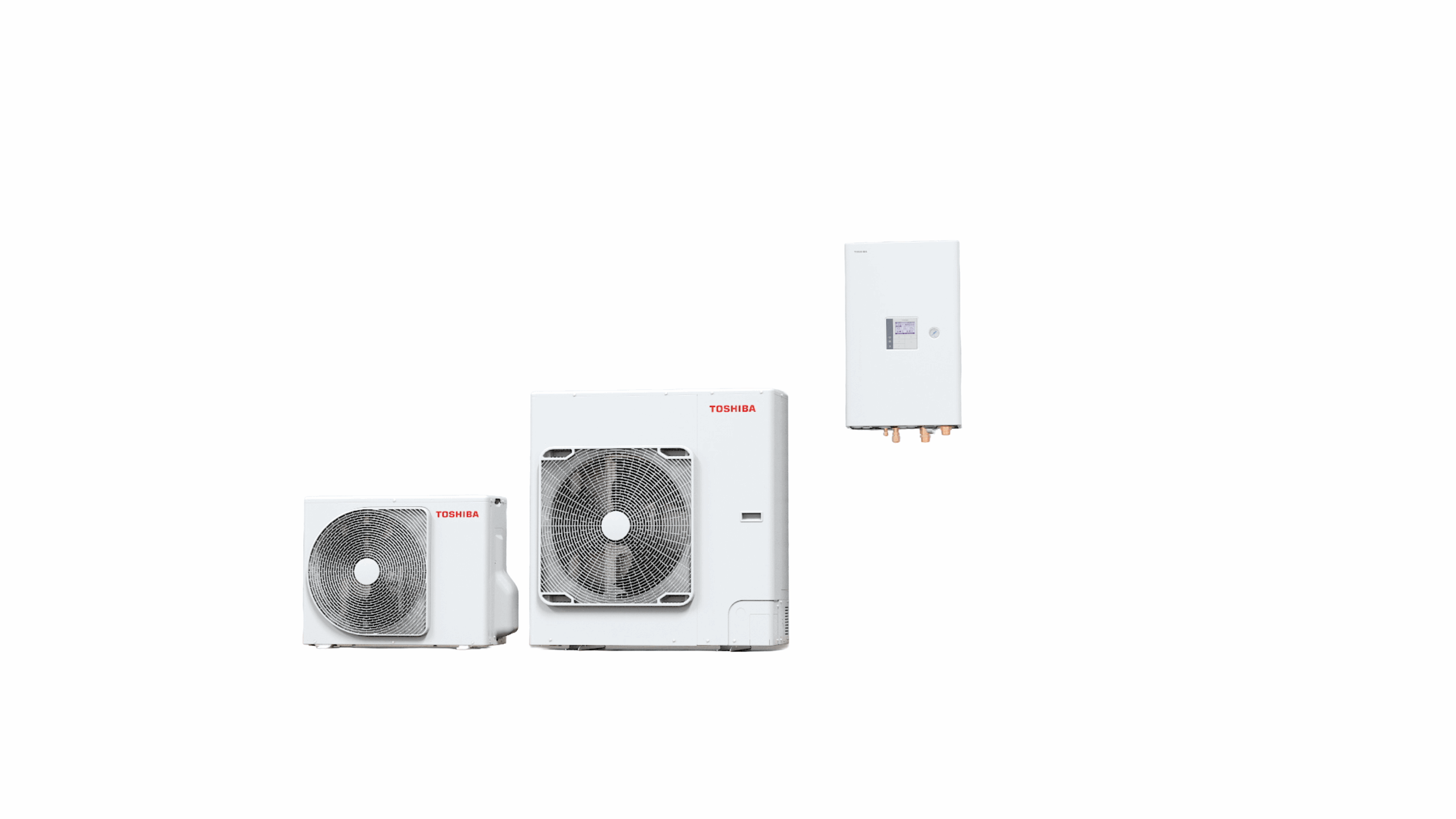

ESTIA R32

Air-to-Water Heat Pump (Wall Mounted)

TECHNOLOGY

DC Twin Rotary Inverter

EFFICIENCY

4kW > 11kW

OPERATING RANGE

Heating: -20oC to +25oC | Cooling: +10oC to +43oC.

CERTIFICATION

Keymark

TECHNOLOGY

DC Twin Rotary Inverter

EFFICIENCY

4kW > 11kW

OPERATING RANGE

Heating: -20oC to +25oC | Cooling: +10oC to +43oC.

CERTIFICATION

Keymark

ENERGY EFFICIENCY & SUSTAINABILITY

The innovative ESTIA R32 range meets the increasing demand for alternatives to conventional heating solutions. A trend driven by growing awareness of the climate emergency and attractive government incentives to adopt more sustainable solutions. Delivering high levels of appeal through its impressive capacity specifications for space heating and hot water production, this  advanced air-to-water heat pump will also reduce energy bills compared to gas or oil boilers and electric heaters.



GUARANTEED COMFORT

With state-of-the-art liquid injection technology, Toshiba’s new twin rotary compressor enables ESTIA R32 to supply water to heating networks at temperatures that guarantee year-round comfort. This is true even during exceptionally cold periods (65°C leaving water temperature for sizes 8 & 11kW). For maximum well-being, ESTIA R32 also produces Domestic Hot Water even at exceptionally high outdoor temperatures (+43°C). 3, 6 or 9kW integrated back-up heater ensures additional Heating & DHW supply whenever needed.



EASY COMMISSIONING

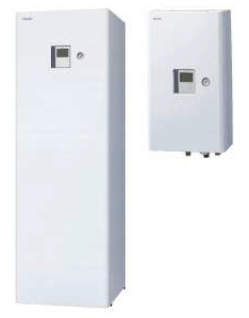

  • Ultra compact Hydro modules with all components accessible from front panel
  • Easy wiring and connections
  • All-In-One indoor floor standing unit offers all water & refrigerant connections from the top
  • Wall Mounted indoor unit offers all connections from bottom
  • High efficiency components: brazed plate heat exchangers, electronic water flow control, variable speed pumps
  • Start-up tool for quick & easy commissioning

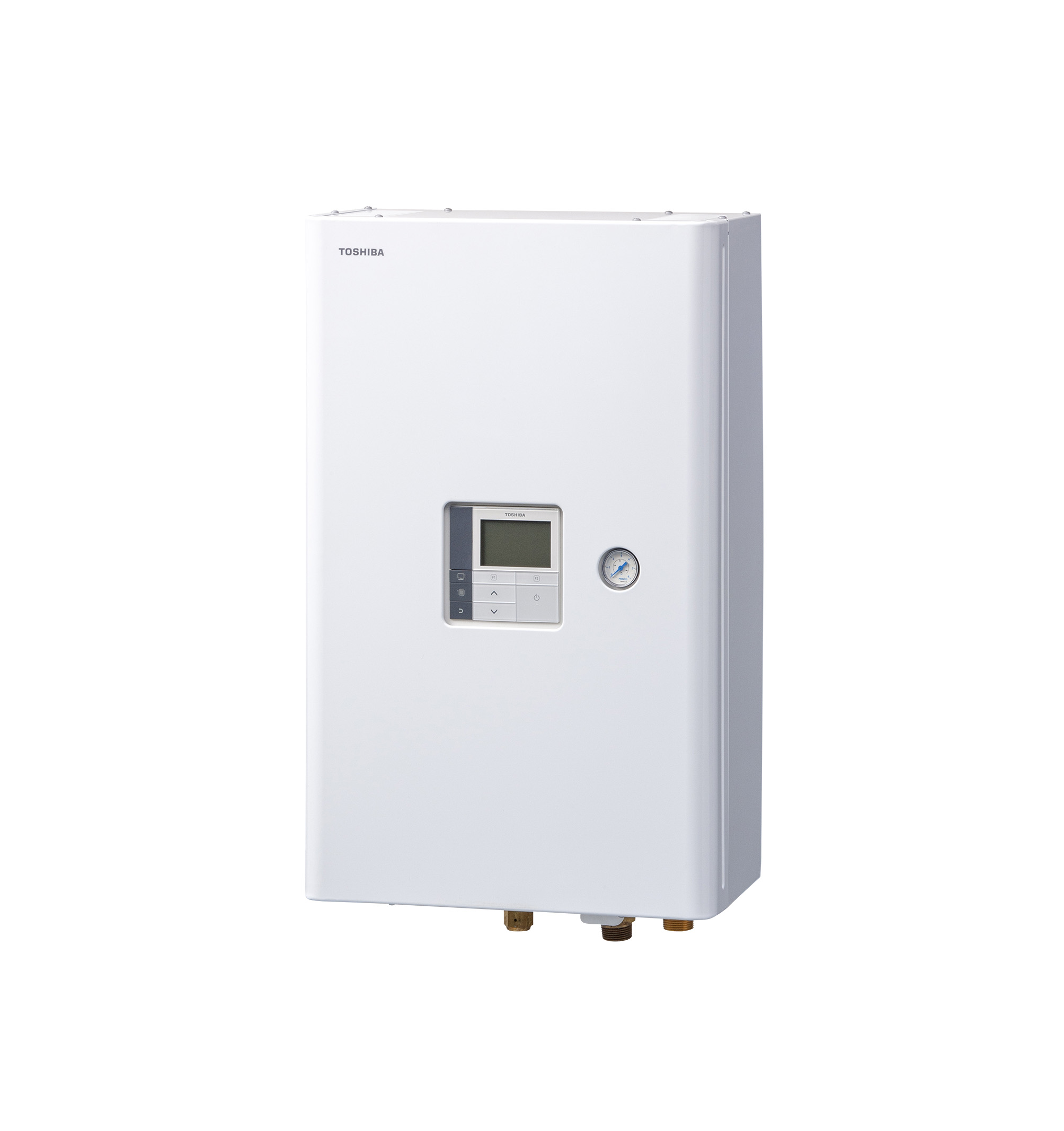

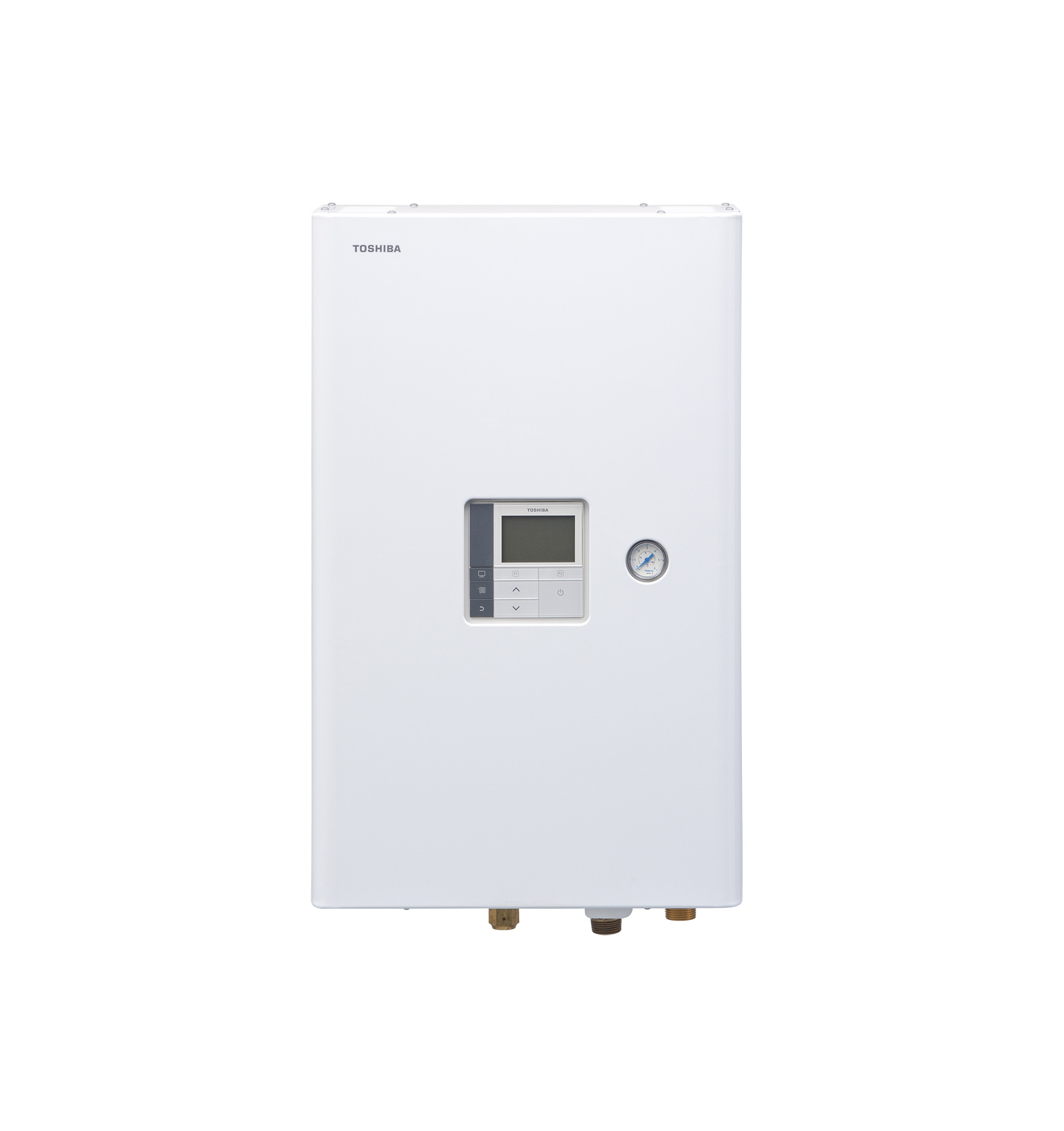

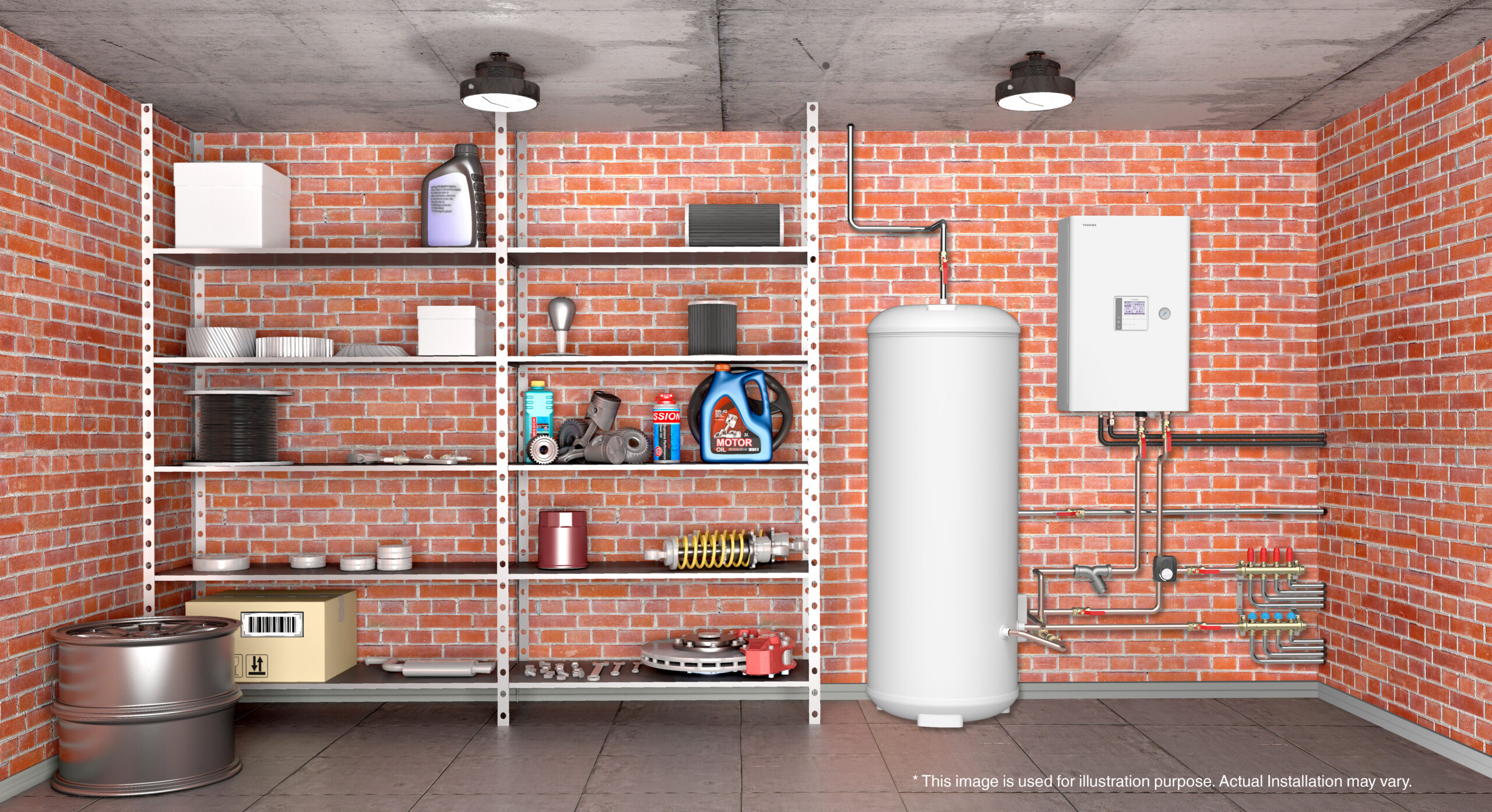

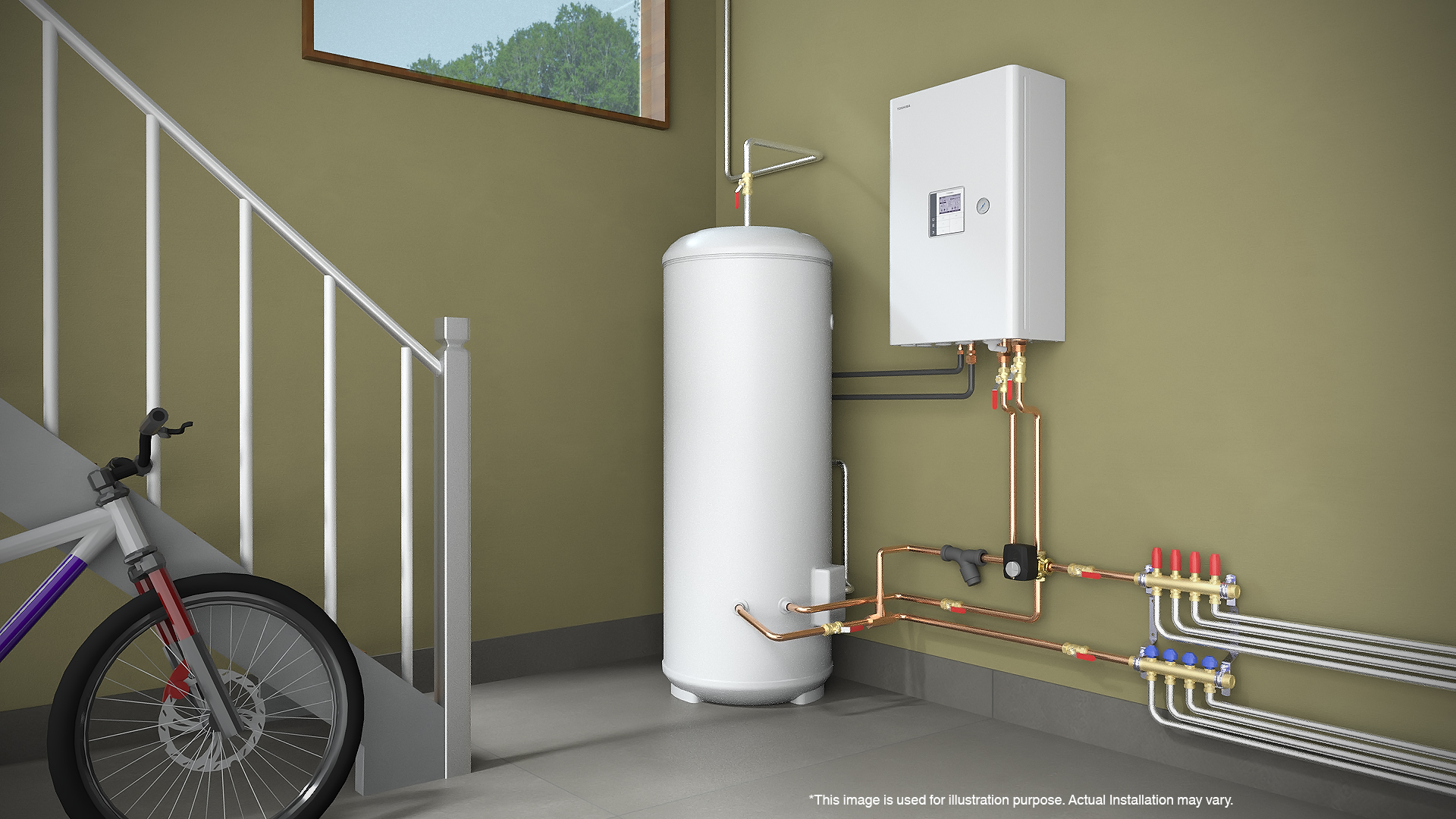

Wall Mounted Hydro Unit



Elegant and compact design ( H 7 2 0 xW45 0 x D 2 35mm) wall-mounted hydro module, to be combined with a choice of external cylinder capacities (150, 200 or 300  liters).

CONTROL ZONES

CONTROL ZONES

Two independent zones: Toshiba air to water heat pump systems can manage two independent zones. This solution enables the delivery of water to diverse emitters at different temperature levels up to 55°C.

COMPATIBILITY

COMPATIBILITY

Estia heat pump systems can be used in combination with different types of emitters: existing heating low temperature radiators, floor heating or fan coil units.

VECTOR CONTROL

VECTOR CONTROL

Toshiba Inverter uses the new vector controlled Intelligent Power Drive Unit, which enables a wider range of frequencies and voltages.

OPERATING RANGE

OPERATING RANGE

  • Operating range in heating: from -20oC to +25oC.
  • Operating range in cooling: from +10oC to +43oC.
HOT WATER

HOT WATER

  • Leaving water temperature up to 55oC.
  • Domestic hot water temperature: from +40oC to +75oC.
REMOTE CONTROL

REMOTE CONTROL

The remote controller is designed to be simple, intuitive and easy to use.

KEYMARK CERTIFIED

KEYMARK CERTIFIED

Toshiba Estia Powerful Heat Pumps are certified by Keymark. Learn more.
